Element epcismd:VocabularyElementListType/VocabularyElement

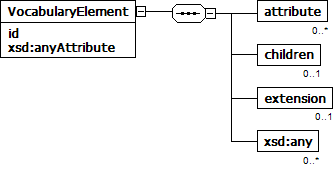

Diagram

Type: epcismd:VocabularyElementType


Definition: Definitions of Vocabulary Elements, each definition specifying a name (which must be unique across all elements within the Vocabulary, and conform to the Identifier Representation rules for Vocabulary Elements as defined in the EPCIS Specification as well as any specific rules specified in the definition of the Vocabulary Type), and optionally specifying master data (specific attribute values) for that element.

Attributes Type:  Occurrence:

id xsd:anyURI required
xsd:anyAttribute

Associations Type:  Occurrence:

xsd:sequence 1 .. 1
attribute epcismd:AttributeType 0 .. unbounded
children epcismd:IDListType 0 .. 1
extension epcismd:VocabularyElementExtensionType 0 .. 1
xsd:any 0 .. unbounded

  Date Of Publication: 01.04.2008
