ComplexType epcisq:SubscriptionControls

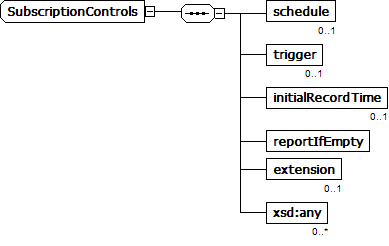

Diagram



Definition: Standing queries are subscribed to via the subscribe method. For each subscription, a SubscriptionControls instance defines how the query is to be processed.

SubscriptionControls
---
schedule : QuerySchedule // see Section 8.2.5.3
trigger : URI // specifies a trigger event known by the
service
initialRecordTime : Time // see Section 8.2.5.2
reportIfEmpty : boolean
<<extension point>>

Associations Type:  Occurrence:

xsd:sequence 1 .. 1
schedule epcisq:QuerySchedule 0 .. 1
trigger xsd:anyURI 0 .. 1
initialRecordTime xsd:dateTime 0 .. 1
reportIfEmpty xsd:boolean 1 .. 1
extension epcisq:SubscriptionControlsExtensionType 0 .. 1
xsd:any 0 .. unbounded
