Element epcisq:Subscribe

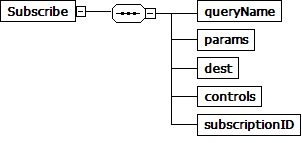

Diagram

Type: epcisq:Subscribe


Definition: Registers a subscriber for a previously defined query having the specified name. The params argument provides the values to be used for any named parameters defined by the query. The dest parameter specifies a destination where results from the query are to be delivered, via the Query Callback Interface. The dest parameter is a URI that both identifies a specific binding of the Query Callback Interface to use and specifies addressing information. The controls parameter controls how the subscription is to be processed; in particular, it specifies the conditions under which the query is to be invoked (e.g., specifying a periodic schedule). The subscriptionID is an arbitrary string that is copied into every response delivered to the specified destination, and otherwise not interpreted by the EPCIS service. The client may use the subscriptionID to identify from which subscription a given result was generated, especially when several subscriptions are made to the same destination.

The dest argument MAY be null or empty, in which case results are delivered to a pre-arranged destination based on the authenticated identity of the caller. If the EPCIS implementation does not have a destination pre-arranged for the caller, or does not permit this usage, it SHALL raise an InvalidURIException.

Associations Type:  Occurrence:

xsd:sequence 1 .. 1
queryName xsd:string 1 .. 1
params epcisq:QueryParams 1 .. 1
dest xsd:anyURI 1 .. 1
controls epcisq:SubscriptionControls 1 .. 1
subscriptionID xsd:string 1 .. 1

  Date Of Publication: 01.04.2008
